An army garrison cap looks simple at first glance. It has no visor, no rigid frame and far fewer parts than a peaked service cap. Yet small mistakes in the pattern can leave it sitting too high, leaning backward or losing its shape after only a few wears.
For uniform suppliers and institutional buyers, the important details are not limited to color. Crown height, curtain depth, piping, sizing and insignia placement all affect the finished appearance.
This guide covers the main features of the Army Green Service Uniform garrison cap, commonly known as the AGSU garrison cap, along with practical points to consider when developing a custom order.

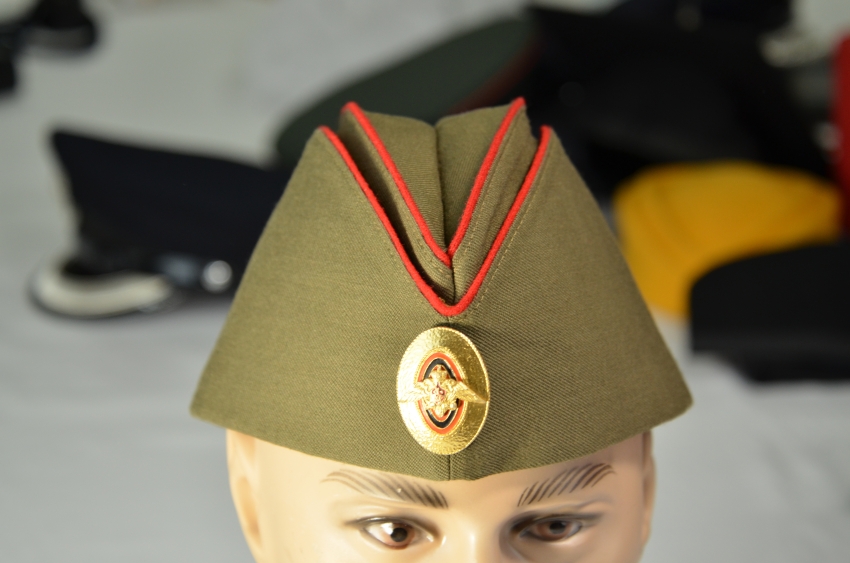

The army garrison cap is a soft, foldable side cap worn with a service uniform. It is sometimes called an overseas cap or side cap, although those terms may also describe caps made to different national patterns.
Unlike an Army service cap, the garrison cap has no visor or fully structured crown. Its shape comes from the cut of the side panels, the center fold and the lower curtain running around the cap.
The U.S. Army identifies the heritage green 564 garrison cap as the primary headgear worn with the Army Green Service Uniform unless a commander directs the use of a beret. The structured service cap may be worn as an optional AGSU headgear item.
Although many military side caps share a similar outline, the proportions can vary considerably. A British-style side cap, a European ceremonial cap and an AGSU-style cap should not be produced from the same pattern without adjustment.
Most searches for army garrison cap regulations are related to fit and insignia position.
The front vertical crease should be centered on the wearer’s forehead and aligned with the nose. The lower front edge sits approximately one inch above the eyebrows. When the cap is worn correctly, the front and rear creases form clean lines, and the top ridge sits parallel to the ground.
The Army’s AGSU wear guide provides illustrations for fit and insignia placement, while directing personnel to DA PAM 670-1 for current official wear instructions.
From a manufacturing point of view, this appearance depends on more than circumference.
A good pattern must account for:
Front and rear crown height
Side panel angle
Curtain depth
Fabric thickness
Internal seam allowance
Size grading between small and large sizes
If the crown is too shallow, the cap may pull upward at the front. If it is too tall, it can look loose and collapse toward one side. Fabric also matters. Material that is too soft may not hold the correct profile, while an overly stiff fabric can make the cap look bulky.
For this reason, a physical fitting sample is more reliable than approving a cap from photographs alone.
The left side of the cap is the main reference point for army garrison cap pin placement.
Officers wear nonsubdued grade insignia centered on the left curtain, one inch from the front crease. Enlisted personnel wear their Distinctive Unit Insignia, often called the unit crest, in the same general position.
This distinction is important when preparing an order:
Officer caps: prepared for grade insignia
Enlisted caps: prepared for the approved unit crest or DUI
Special-position caps: may follow separate authorized insignia requirements
The phrase army garrison cap unit crest is also used more broadly by schools, cadet organizations, ceremonial groups and private uniform buyers. In those cases, the emblem may be a custom metal badge, embroidered crest or organizational insignia rather than an official U.S. Army DUI.
The buyer should confirm the emblem dimensions and attachment method before production. A small metal rank device and a heavy unit crest do not place the same amount of pressure on the fabric.
The placement should be measured from the front crease, not simply from the cut edge of the panel.
It is also better to check the position while the cap is placed on a head form. A cap changes shape when it curves around the head, so a badge that appears level while the cap is flat may tilt slightly when worn.
For heavier pins or crests, a light reinforcement layer may be added behind the left curtain. The backing should hold the badge securely without making one side of the cap visibly thicker.
Pin posts must also be positioned carefully. Poorly placed fasteners may touch the wearer’s head or pull the outer fabric out of shape.
The garrison cap and Army service cap are both worn with service uniforms, but their construction is quite different.
The garrison cap is:
Soft and foldable
Easy to store
Made without a visor
Shaped mainly by its pattern and seams
The Army service cap is:
Fully structured
Made with a rigid visor
Supported by an internal frame
Fitted with a front cap device and other hardware
The U.S. Army currently describes the garrison cap as the primary AGSU headgear and the service cap as an optional alternative.
A service cap usually requires more components, but that does not mean a garrison cap is easier to produce correctly. On a soft side cap, uneven stitching or an inaccurate crown angle is immediately visible because there is no rigid frame to correct the shape.
A clear specification makes sampling faster and helps keep bulk production consistent.
Before requesting a custom army garrison cap, buyers should provide as much of the following information as possible:
Front, side and rear reference photographs
Fabric composition and weight
Pantone, fabric swatch or approved color reference
Crown height and curtain depth
Piping color and width
Lining and sweatband requirements
Size range and size chart
Insignia dimensions and placement
Label and packaging instructions
An original sample, when available
A photograph can show the general style, but it rarely provides enough information to reproduce an exact fit. Two caps may look similar in a flat image while using very different crown heights or side-panel angles.
For contract and institutional orders, the approved sample should remain the main production reference after confirmation.
StarCap develops and manufactures custom garrison caps, officer caps and other uniform headwear for international buyers.
With more than 30 years of hat-making experience and production facilities in Shenzhen and Dongguan, StarCap can develop a garrison cap from a physical sample, measurement sheet, technical drawing or buyer-approved specification.
During sampling, the main checks include:
Overall cap profile
Crown balance
Front height
Curtain depth
Piping consistency
Size and fit
Insignia position
Stitching and internal finishing
The sample should be checked both flat and on a suitable head form. A cap that looks neat on a table may sit differently once worn.
After the material, construction and measurements are approved, the confirmed sample and pattern can be used as the standard for bulk production.
StarCap can also prepare the cap for buyer-supplied badges, rank devices or custom crests. Buyers should provide the exact badge size, post spacing and attachment requirements before the sample is made.
Officer grade insignia is centered on the left curtain and positioned one inch from the front crease. Buyers should confirm the insignia dimensions before marking or reinforcing the attachment area.
Enlisted personnel wear the Distinctive Unit Insignia on the left curtain, one inch from the front crease. Official insignia requirements should always be checked against current Army guidance.
No. The garrison cap is a soft side cap without a visor. The service cap is a structured peaked cap with a rigid crown, visor and front cap device.
Yes. A physical sample is often the most useful reference because it allows the pattern, measurements, material and fit to be checked before a new sample is developed.
A properly made army garrison cap should sit level, hold a clean silhouette and remain comfortable during extended wear. Correct results depend on the relationship between the pattern, fabric, sizing and insignia position.
Buyers should avoid approving a cap from appearance alone. A clear measurement sheet, fabric reference, badge dimensions and fitted sample provide a much stronger standard for bulk production.
StarCap supports custom development and manufacturing for army-style garrison caps, military side caps and other uniform headwear. Buyers can submit a sample, drawing or procurement specification for evaluation and sampling.
